View all Dimensions for Oval Tapered Air Filter
AEM Oval Tapered Air Filter
Find Oval Tapered Air Filter by Dimension
| Part | Height | Top Outside Length | Top Outside Width | Base Outside Length | Base Outside Width | Top Style | Flange Angle | Flange Length | Flange Inside Diameter | Flange Offset | Air Filter Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
21-2148DK
|
5.500 in (139.7 mm) |
6.125 in (155.575 mm) |
4.000 in (101.6 mm) |
8.500 in (215.9 mm) |
7.000 in (177.8 mm) |
Rubber | 0 |
1.563 in (39.7 mm) |
3.500 in (88.9 mm) |
0.000 in (0 mm) |
Non-woven Synthetic |
|

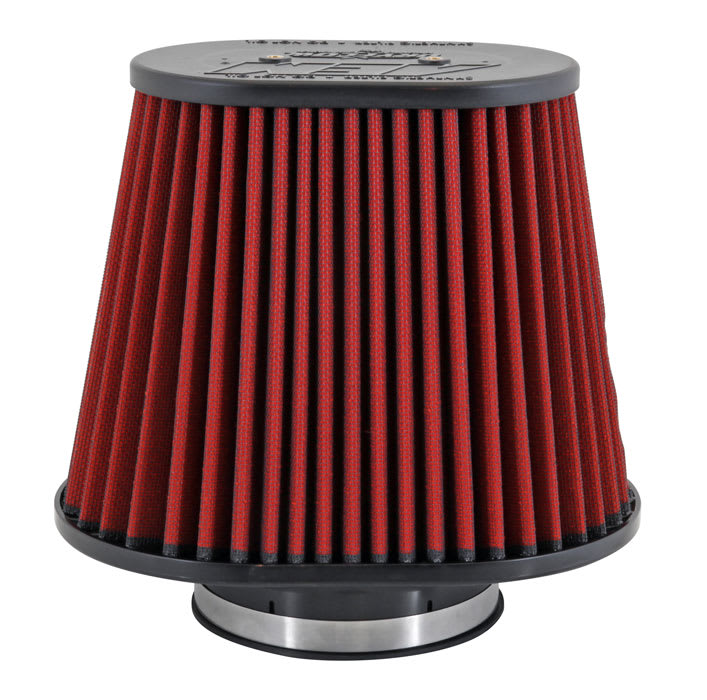

21-2258DK
|
8.000 in (203.2 mm) |
7.750 in (196.85 mm) |
5.000 in (127 mm) |
10.500 in (266.7 mm) |
8.000 in (203.2 mm) |
ABS Plastic | 0 |
1.500 in (38.1 mm) |
5.000 in (127 mm) |
0.000 in (0 mm) |
Non-woven Synthetic |
|

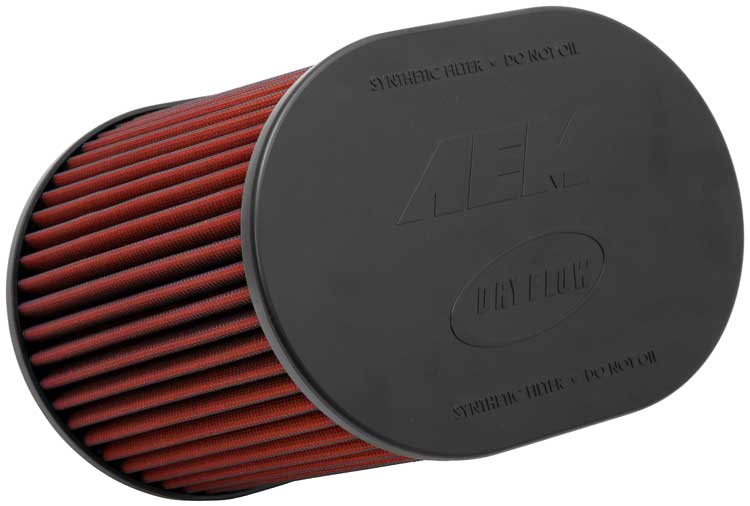

21-2259DK
|
9.000 in (228.6 mm) |
9.500 in (241.3 mm) |
6.750 in (171.45 mm) |
10.500 in (266.7 mm) |
8.000 in (203.2 mm) |
ABS Plastic | 0 |
1.500 in (38.1 mm) |
4.000 in (101.6 mm) |
0.000 in (0 mm) |
Non-woven Synthetic |
|
21-2267DK
|
7.000 in (177.8 mm) |
9.500 in (241.3 mm) |
6.750 in (171.45 mm) |
10.500 in (266.7 mm) |
8.000 in (203.2 mm) |
ABS Plastic | 0 |
1.500 in (38.1 mm) |
4.500 in (114.3 mm) |
0.000 in (0 mm) |
Non-woven Synthetic |
|
21-2277DK
|
7.000 in (177.8 mm) |
9.500 in (241.3 mm) |
6.750 in (171.45 mm) |
10.500 in (266.7 mm) |
8.000 in (203.2 mm) |
ABS Plastic | 0 |
1.500 in (38.1 mm) |
5.000 in (127 mm) |
0.000 in (0 mm) |
Non-woven Synthetic |
